The Win32 Network Management APIs 25






NetWkstaSetInfo() Program Example


The NetWkstaSetInfo() function configures a workstation with information that remains in effect after the system has been reinitialized. The following code sample demonstrates how to set the session time-out value associated with a workstation using a call to the NetServerSetInfo() function. (The session time-out is the number of seconds the server waits before disconnecting an inactive session.) The code specifies information level 502 (WKSTA_INFO_502).

Create a new empty Win32 console application project. Give the project name and change the project location is needed.


NetWkstaSetInfo() Program Example: Creating new C++ Win32 console application project in Visual C++ .NET


Then, add the source file and give it a suitable name.

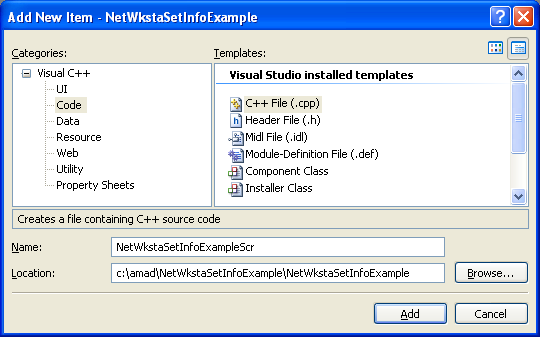

NetWkstaSetInfo() Program Example: Adding new C++ source file for the source code


Then, add the following source code.


/* Unicode setting if needed

#ifndef UNICODE

#define UNICODE




#pragma comment(lib, "netapi32.lib")


#include <stdio.h>

#include <windows.h>

#include <lm.h>


int wmain(int argc, wchar_t *argv[])


   LPWKSTA_INFO_502 pBuf = NULL;

   WKSTA_INFO_502 wi;

   DWORD dwLevel = 502;

   NET_API_STATUS nStatus;

   LPWSTR pszServerName = NULL;


   if ((argc < 2) || (argc > 3))


      fwprintf_s(stderr, L"Usage: %s [\\\\ServerName] SessionTimeOut\n", argv[0]);

      wprintf(L"Example: %s \\\\MyBusinessServer 1000\n", argv[0]);




   if (argc == 3)

      pszServerName = argv[1];


   // Retrieve the current settings.

   nStatus = NetWkstaGetInfo(pszServerName,dwLevel,(LPBYTE *)&pBuf);


   if (nStatus != NERR_Success)


         wprintf(L"NetWkstaGetInfo() failed!\n");

         fwprintf_s(stderr, L"A system error has occurred (NetWkstaGetInfo): %d\n", nStatus);

         return -1;



         wprintf(L"NetWkstaGetInfo() looks fine!\n");


   if (pBuf != NULL)


      // Copy the existing settings to the new structure and free the buffer.

      CopyMemory(&wi, pBuf, sizeof(wi));





      fwprintf_s(stderr, L"Invalid memory lol!\n");

      return -1;



   // Set a new session time-out value by calling the NetWkstaSetInfo function.

   wi.wki502_sess_timeout = _wtoi(argv[argc-1]);

   nStatus = NetWkstaSetInfo(pszServerName,dwLevel,(LPBYTE)&wi,NULL);


   // Display the result of the call.

   if (nStatus == NERR_Success)


         wprintf(L"NetWkstaSetInfo() is pretty fine!\n");

         fwprintf_s(stderr, L"Workstation information reset: session time-out = %d\n", _wtoi(argv[argc-1]));



         fwprintf_s(stderr, L"NetWkstaSetInfo() failed! A system error %d has occurred\n", nStatus);


   return 0;



Build and run the project. The following screenshot is a sample output.

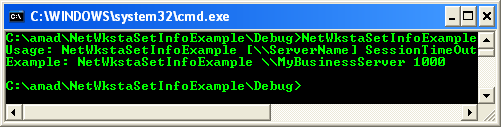

NetWkstaSetInfo() Program Example: A sample console program output
