Windows Thread Synchronization 25






Using Waitable Timer Objects Program Example


The following example creates a timer that will be signaled after a 10 second delay. First, the code uses the CreateWaitableTimer() function to create a waitable timer object. Then it uses the SetWaitableTimer() function to set the timer. The code uses the WaitForSingleObject() function to determine when the timer has been signaled.

Create a new empty Win32 console application project. Give a suitable project name and change the project location if needed.


Using Waitable Timer Objects Program Example: Creating new Win32 empty console application project


Then, add the source file and give it a suitable name.


Using Waitable Timer Objects Program Example: Adding new C++ source file to the existing project


Next, add the following source code.


#include <windows.h>

#include <stdio.h>


int wmain()


    HANDLE hTimer = NULL;

    // Used to represent a 64-bit signed integer value

    // or very large number...

    LARGE_INTEGER liDueTime;


    liDueTime.QuadPart = -100000000LL;


    // Create an unnamed waitable timer.

    hTimer = CreateWaitableTimer(NULL, TRUE, NULL);

    if (NULL == hTimer)


        wprintf(L"CreateWaitableTimer() failed, error %d\n", GetLastError());

        return 1;



            wprintf(L"CreateWaitableTimer() is OK, unnamed waitable timer was created\n");


    // Set a timer to wait for 10 seconds.

    if (!SetWaitableTimer(hTimer, &liDueTime, 0, NULL, NULL, 0))


        wprintf(L"SetWaitableTimer() failed, error %d\n", GetLastError());

        return 2;



            wprintf(L"SetWaitableTimer() is OK, waiting for 10 seconds...\n");


    // Wait for the timer.

    if (WaitForSingleObject(hTimer, INFINITE) != WAIT_OBJECT_0)

        wprintf(L"WaitForSingleObject() failed, error %d\n", GetLastError());


            wprintf(L"WaitForSingleObject() - timer was signaled...\n");


    return 0;

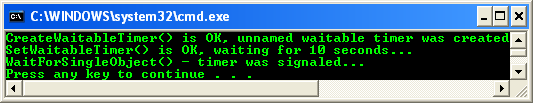

Build and run the project. The following screenshot is a sample output.


Using Waitable Timer Objects Program Example: A sample console program output
