The Windows Registry 1











Brief Intro



The registry is a system-defined database in which applications and system components store and retrieve configuration data. The data stored in the registry varies according to the version of Microsoft Windows. Applications use the registry API to retrieve, modify, or delete registry data. You should not edit registry data that does not belong to your application unless it is absolutely necessary. If there is an error in the registry, your system may not function properly. If this happens, you can restore the registry to the state it was in when you last started the computer successfully.



Structure of the Registry



The registry is a hierarchical database that contains data that is critical for the operation of Windows and the applications and services that run on Windows. The data is structured in a tree format. Each node in the tree is called a key. Each key can contain both subkeys and data entries called values. Sometimes, the presence of a key is all the data that an application requires; other times, an application opens a key and uses the values associated with the key. A key can have any number of values, and the values can be in any form. Each key has a name consisting of one or more printable characters. Key names are not case sensitive. Key names cannot include the backslash character (\), but any other printable character can be used. Value names and data can include the backslash character. The name of each subkey is unique with respect to the key that is immediately above it in the hierarchy. Key names are not localized into other languages, although values may be.

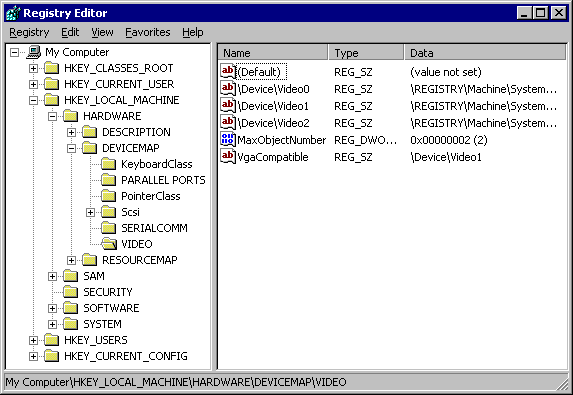

The following illustration is an example registry key structure as displayed by the Registry Editor.



The Registry Editor, regedt32, regedit



Each of the trees under My Computer is a key. The HKEY_LOCAL_MACHINE key has the following subkeys:



  1. HARDWARE,
  2. SAM,
  3. SECURITY,
  4. SOFTWARE, and
  5. SYSTEM.



Each of these keys in turn has subkeys. For example, the HARDWARE key has the subkeys DESCRIPTION, DEVICEMAP, and RESOURCEMAP; the DEVICEMAP key has several subkeys including VIDEO. Each value consists of a value name and its associated data, if any. MaxObjectNumber and VgaCompatible are values that contain data under the VIDEO subkey. A registry tree can be 512 levels deep. You can create up to 32 levels at a time through a single registry API call.
