The Windows File Management 26











Using Streams Program Example



The example in this topic demonstrates how to use basic NTFS file system streams. This example creates a file, called "anothertestfile," (without any extension) with a size of 46 bytes. However, the file also has a file stream, called "stream," which adds an additional 24 bytes that is not reported by the operating system. Therefore, when you view the file-size property for the file, you see only the size of the file testfile.

Create a new empty Win32 console application project. Give a suitable project name and change the project location if needed.

Then, add the source file and give it a suitable name.

Next, add the following source code.



#include <windows.h>

#include <stdio.h>

#include <strsafe.h>



// A prototype that receives a function name, displaying

// system error code and its respective message

void DisplayErrorBox(LPTSTR lpszFunction);



int wmain(int argc, WCHAR *argv[])

{

    HANDLE hFile, hStream;

    DWORD dwRet;



    hFile = CreateFile(L"anothertestfile",

                        GENERIC_WRITE,

                        FILE_SHARE_WRITE,

                        NULL,

                        OPEN_ALWAYS,

                        0,

                        NULL );



      if(hFile == INVALID_HANDLE_VALUE )

    {

       DisplayErrorBox(L"CreateFile()");

       return 1;

    }

    else

      {

            wprintf(L"CreateFile() should be fine!\n");

            wprintf(L"Writing some bytes to anothertestfile...\n");



            if(WriteFile(hFile, L"This is anothertestfile", 46, &dwRet, NULL ) != 0)

                  wprintf(L"WriteFile() is fine!\n");

            else

                  DisplayErrorBox(L"WriteFile()");

      }



      hStream = CreateFile(L"anothertestfile:stream",

                          GENERIC_WRITE,

                          FILE_SHARE_WRITE,

                          NULL,

                          OPEN_ALWAYS,

                          0,

                          NULL );



      if(hStream == INVALID_HANDLE_VALUE)

        DisplayErrorBox(L"CreateFile()");

    else

      {

            wprintf(L"CreateFile() should be fine!\n");

            wprintf(L"Writing some stream to the file...\n");



        // Take note the 3rd parameter which must be ample for Unicode/multibyte

        if(WriteFile(hStream, L"This is anothertestfile:stream", 60, &dwRet, NULL) != 0)

                  wprintf(L"WriteFile() is fine!\n");

        else

                  DisplayErrorBox(L"WriteFile()");

      }

      return 0;

}



void DisplayErrorBox(LPTSTR lpszFunction)

{

    // Retrieve the system error message for the last-error code

    LPVOID lpMsgBuf;

    LPVOID lpDisplayBuf;

    DWORD dw = GetLastError();



    FormatMessage(

        FORMAT_MESSAGE_ALLOCATE_BUFFER |

        FORMAT_MESSAGE_FROM_SYSTEM |

        FORMAT_MESSAGE_IGNORE_INSERTS,

        NULL,

        dw,

        MAKELANGID(LANG_NEUTRAL, SUBLANG_DEFAULT),

        (LPTSTR) &lpMsgBuf,

        0, NULL);



    // Display the error message and clean up

    lpDisplayBuf = (LPVOID)LocalAlloc(LMEM_ZEROINIT, (lstrlen((LPCTSTR)lpMsgBuf)+lstrlen((LPCTSTR)lpszFunction)+40)*sizeof(WCHAR));

    StringCchPrintf((LPTSTR)lpDisplayBuf, LocalSize(lpDisplayBuf) / sizeof(WCHAR), L"%s failed with error %d: %s", lpszFunction, dw, lpMsgBuf);

    MessageBox(NULL, (LPCTSTR)lpDisplayBuf, L"Error", MB_OK);



    LocalFree(lpMsgBuf);

    LocalFree(lpDisplayBuf);

}



If you type type anothertestfile at a command prompt, it displays the following output:



T h i s  i s  a n o t h e r t e s t f i l e



However, if you type the words type testfile:stream, it generates the following error:



"The filename, directory name, or volume label syntax is incorrect."



Using Streams Example: A sample console program output in action



To view what is in testfile:stream, use WordPad by entering the following command:



"C:\Program Files\Windows NT\Accessories\wordpad.exe" anothertestfile:stream



Viewing the file stream using Wordpad



The text displayed in WordPad is as follows.

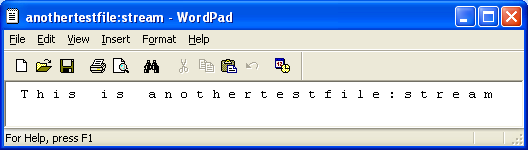

The stream displayed using Wordpad



Or you can use the more command.



Using the more command to view file stream



To edit the file content, we can use the echo command. For example:



echo This is another new string for anothertestfile:stream > anothertestfile:stream



Using the echo command to edit the file sttream content



The following is the sample output for the edited file stream when verified using more command.



A sample output for the edited file stream when verified using more command



Alternate File Stream



From user point of view, tools and story for NTFS Alternate File Stream, please refer to the following link: NTFS Alternate File Stream – What, When and How-to.
