The Windows File Management 19











File Management Program Examples



The following samples use the file management functions:

  1. Appending One File to Another File
  2. Creating and Using a Temporary File
  3. Locking and Unlocking Byte Ranges in Files
  4. Opening a File for Reading or Writing
  5. Retrieving and Changing File Attributes
  6. Testing for the End of a File
  7. Using Streams



Appending One File to Another File Program Example



The following code example shows you how to open and close files, read and write to files, and lock and unlock files. In the example, the application appends one file to the end of another file. First, the application opens the file being appended with permissions that allow only the application to write to it. However, during the append process other processes can open the file with read-only permission, which provides a snapshot view of the file being appended. Then, the file is locked during the actual append process to ensure the integrity of the data being written to the file. This example does not use transactions. If you were using transacted operations, you would only be able have read-only access. In this case, you would only see the appended data after the transaction commit operation completed. The example also shows that the application opens two files by using CreateFile():

  1. testcreatefile1.txt is opened for reading.
  2. testcreatefile2.txt is opened for writing and shared reading.



Then the application uses ReadFile() and WriteFile() to append the contents of testcreatefile1.txt to the end of testcreatefile2.txt by reading and writing the 4K blocks. However, before writing to the second file, the application uses SetFilePointer() to set the pointer of the second file to the end of that file, and uses LockFile() to lock the area to be written. This prevents another thread or process with a duplicate handle from accessing the area while the write operation is in progress. When each write operation is complete, UnlockFile() is used to unlock the locked area.



Create a new empty Win32 console application project. Give a suitable project name and change the project location if needed.

Then, add the source file and give it a suitable name.

Next, add the following source code.



#include <windows.h>

#include <stdio.h>

// A safer version for string manipulation

#include <strsafe.h>



// A prototype that receives a function name, displaying

// system error code and its respective message

void DisplayErrorBox(LPTSTR lpszFunction);



int wmain(int argc, WCHAR *argv[])

{

      HANDLE hFile;

      HANDLE hAppend;

      LPWSTR pFileName1 = L"C:\\testcreatefile1.txt";

      LPWSTR pFileName2 = L"testcreatefile2.txt";

      DWORD  dwBytesRead, dwBytesWritten, dwPos;

      BYTE   buff[4096];



      // Open the existing file

      hFile = CreateFile(pFileName1, // open testcreatefile1.txt

                    GENERIC_READ,             // open for reading

                    0,                        // do not share

                    NULL,                     // no security

                    OPEN_EXISTING,            // existing file only

                    FILE_ATTRIBUTE_NORMAL,    // normal file

                    NULL);                    // no attr. template



      if (hFile == INVALID_HANDLE_VALUE)

      {

         DisplayErrorBox(L"CreateFile() 1");

         return 1;

      }

      else

            wprintf(L"CreateFile() 1 is OK. %s was opened successfully!\n", pFileName1);



      // Open the existing file, or if the file does not exist, create a new file

      hAppend = CreateFile(pFileName2, // open testcreatefile2.txt

                        FILE_APPEND_DATA,         // open for writing

                        FILE_SHARE_READ,          // allow multiple readers

                        NULL,                     // no security

                        OPEN_ALWAYS,              // open or create

                        FILE_ATTRIBUTE_NORMAL,    // normal file

                        NULL);                    // no attr. template



      if (hAppend == INVALID_HANDLE_VALUE)

      {

         DisplayErrorBox(L"CreateFile() 2");

         return 1;

      }

      else

            wprintf(L"CreateFile() 2 is OK. %s was created  &  opened successfully!\n", pFileName2);



      // Append the first file to the end of the second file.

      // Lock the second file to prevent another process from

      // accessing it while writing to it. Unlock the file when writing is complete

      wprintf(L"Reading %s file content...\n", pFileName1);

      while (ReadFile(hFile, buff, sizeof(buff), &dwBytesRead, NULL)&& dwBytesRead > 0)

        {

            dwPos = SetFilePointer(hAppend, 0, NULL, FILE_END);

            wprintf(L"SetFilePointer() returns %u\n", dwPos);



            if(LockFile(hAppend, dwPos, 0, dwBytesRead, 0) != 0)

                  wprintf(L"LockFile() is pretty fine!\n");

            else

                  DisplayErrorBox(L"LockFile()");

            if(WriteFile(hAppend, buff, dwBytesRead, &dwBytesWritten, NULL) != 0)

                  wprintf(L"WriteFile() is pretty fine!\n");

            else

                  DisplayErrorBox(L"WriteFile()");

            if(UnlockFile(hAppend, dwPos, 0, dwBytesRead, 0) != 0)

                  wprintf(L"UnlockFile() is pretty fine!\n");

            else

                  DisplayErrorBox(L"UnlockFile()");

        }



      // Close both files.

      if(CloseHandle(hFile) != 0)

            wprintf(L"Closing hFile handle!\n");

      else

            DisplayErrorBox(L"CloseHandle(hFile)");

      if(CloseHandle(hAppend) != 0)

            wprintf(L"Closing hAppend handle!\n");

      else

            DisplayErrorBox(L"CloseHandle(hAppend)");

      return 0;

}



void DisplayErrorBox(LPTSTR lpszFunction)

{

    // Retrieve the system error message for the last-error code

    LPVOID lpMsgBuf;

    LPVOID lpDisplayBuf;

    DWORD dw = GetLastError();



    FormatMessage(

        FORMAT_MESSAGE_ALLOCATE_BUFFER |

        FORMAT_MESSAGE_FROM_SYSTEM |

        FORMAT_MESSAGE_IGNORE_INSERTS,

        NULL,

        dw,

        MAKELANGID(LANG_NEUTRAL, SUBLANG_DEFAULT),

        (LPTSTR) &lpMsgBuf,

        0, NULL );



    // Display the error message and clean up

    lpDisplayBuf = (LPVOID)LocalAlloc(LMEM_ZEROINIT, (lstrlen((LPCTSTR)lpMsgBuf)+lstrlen((LPCTSTR)lpszFunction)+40)*sizeof(WCHAR));

    StringCchPrintf((LPTSTR)lpDisplayBuf, LocalSize(lpDisplayBuf) / sizeof(WCHAR),  L"%s failed with error %d: %s", lpszFunction, dw, lpMsgBuf);

    MessageBox(NULL, (LPCTSTR)lpDisplayBuf, L"Error", MB_OK);



    LocalFree(lpMsgBuf);

    LocalFree(lpDisplayBuf);

}



Build and run the project. The following screenshot is a sample output when the first file cannot be found.



Appending One File to Another File Program Example: A sample console program output in action with an error file cannot be found



Create a text file named testcreatefile1.txt, write some text and save it in the root C: drive.



Appending One File to Another File Program Example: Creating a text file as the argument



Next, we re-run the project.

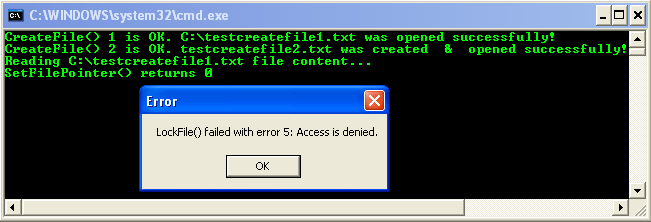

Appending One File to Another File Program Example: The LockFile() error



Appending One File to Another File Program Example: The UnlockFile() error



Well, there are errors. However, when we re-run the program second times, those errors disappeared.

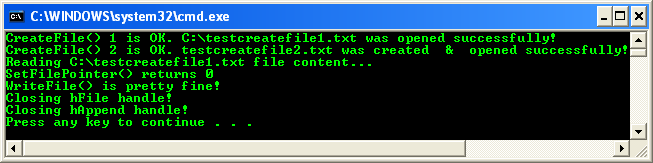

Appending One File to Another File Program Example: A sample console program output in action

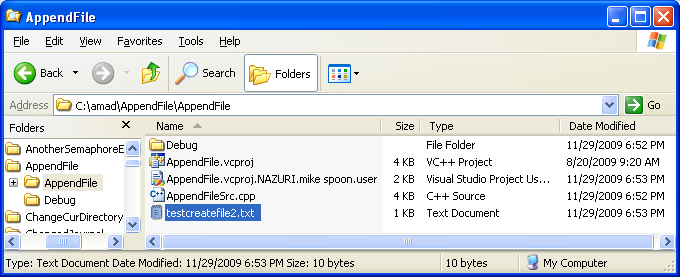

The second file was created successfully under the project's folder as shown below.



Appending One File to Another File Program Example: The second file was successfully created!

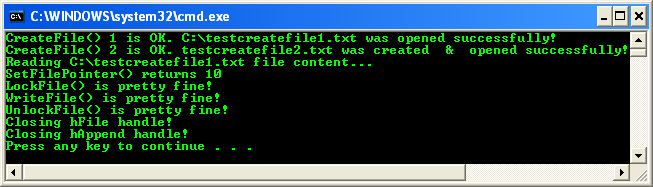

Then, re-run the program again so that the second run will append the first file's content to the second file.



Appending One File to Another File Program Example: A sample console program output in action, running it for the second times - no more error



Then, open the testcreatefile2.txt. We can see in testcreatefile2.txt that the content of testcreatefile1.txt was appended.



Appending One File to Another File Program Example: The file's content was appended
