Windows Thread Synchronization 34











Using Timer Queues Program Example



The following example creates a timer routine that will be executed by a thread from a timer queue after a 10 second delay. First, the code uses the CreateEvent() function to create an event object that is signaled when the timer-queue thread completes. Then it creates a timer queue and a timer-queue timer, using the CreateTimerQueue() and CreateTimerQueueTimer() functions, respectively. The code uses the WaitForSingleObject() function to determine when the timer routine has completed. Finally, the code calls DeleteTimerQueue() to clean up.

Create a new empty Win32 console application project. Give a suitable project name and change the project location if needed.



Using Timer Queues Program Example: Creating new Win32 C++ console application project in Visual C++ .NET



Then, add the source file and give it a suitable name.

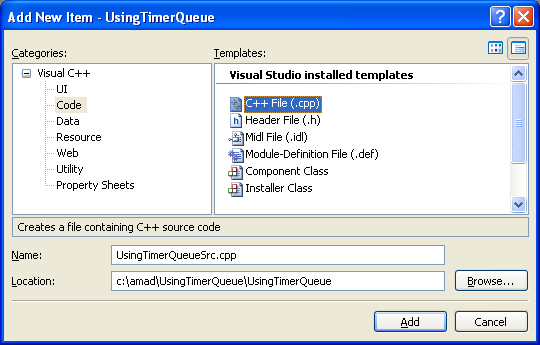

Using Timer Queues Program Example: Adding C++ source file to the project



Next, add the following source code.



#include <windows.h>

#include <stdio.h>



HANDLE gDoneEvent;



void CALLBACK TimerRoutine(PVOID lpParam, BOOLEAN TimerOrWaitFired)

{

    if (lpParam == NULL)

    {

        wprintf(L"TimerRoutine() lpParam is NULL\n");

    }

    else

    {

        // lpParam points to the argument; in this case it is an int

        wprintf(L"Timer routine called. Parameter is %d.\n", *(int*)lpParam);

    }



    SetEvent(gDoneEvent);

}



int wmain()

{

    HANDLE hTimer = NULL;

    HANDLE hTimerQueue = NULL;

    int arg = 1234;



    // Use an event object to track the TimerRoutine execution

    gDoneEvent = CreateEvent(NULL, TRUE, FALSE, NULL);

    if (NULL == gDoneEvent)

    {

        wprintf(L"CreateEvent() failed, error %d\n", GetLastError());

        return 1;

    }

      else

            wprintf(L"CreateEvent() is OK!\n");



    // Create the timer queue.

    hTimerQueue = CreateTimerQueue();

    if (NULL == hTimerQueue)

    {

        wprintf(L"CreateTimerQueue() failed, error %d\n", GetLastError());

        return 2;

    }

      else

            wprintf(L"CreateTimerQueue() - timer queue was successfully created!\n");



    // Set a timer to call the timer routine in 10 seconds.

    if (!CreateTimerQueueTimer( &hTimer, hTimerQueue, (WAITORTIMERCALLBACK)TimerRoutine, &arg , 10000, 0, 0))

    {

        wprintf(L"CreateTimerQueueTimer() failed, error %d\n", GetLastError());

        return 3;

    }

      else

            // TODO: Do other useful work here

            wprintf(L"CreateTimerQueueTimer() - call timer routine in 10 seconds...\n");



    // Wait for the timer-queue thread to complete using an event

    // object. The thread will signal the event at that time.

    if (WaitForSingleObject(gDoneEvent, INFINITE) != WAIT_OBJECT_0)

        wprintf(L"WaitForSingleObject() failed, error %d\n", GetLastError());

      else

            wprintf(L"WaitForSingleObject() is OK!\n");



    if(CloseHandle(gDoneEvent) != 0)

            wprintf(L"gDoneEvent handle was closed successfully!\n");

      else

            wprintf(L"Failed to close gDoneEvent handle, error %d\n", GetLastError());



    // Delete all timers in the timer queue.

    if (!DeleteTimerQueue(hTimerQueue))

        wprintf(L"DeleteTimerQueue() failed, error %d\n", GetLastError());

      else

            wprintf(L"DeleteTimerQueue() - deleting all timers in the timer queue...\n");



    return 0;

}



Build and run the project. The following screenshots are sample outputs.



Using Timer Queues Program Example: A sample output with 10 seconds call timer

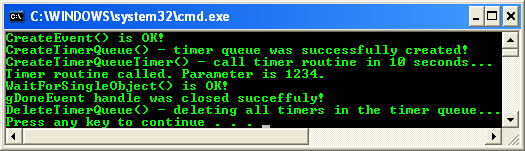

Using Timer Queues Program Example: Sample output with call timer called
