Debugging ReactOS 2

















The topics covered in this session are:

  1. Setting up virtual Ports Using com0com





Setting up Virtual Ports Using com0com

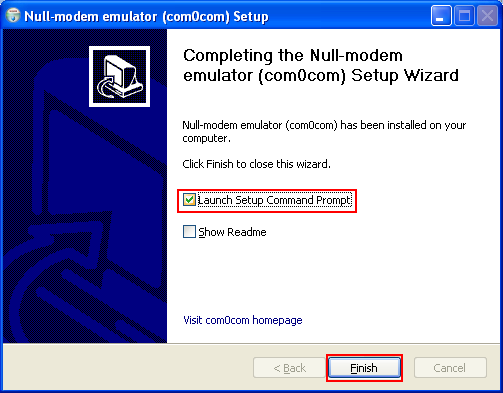

Then, select the Launch Setup Command Prompt if you want to directly launch the setup console or click Finish to complete the installation steps. We click Finish in this case.



Debugging ReactOS: the com0com null modem setup completing the null-modem emulator setup





Or you can also use the GUI setup: Select Start All Programs com0com Setup

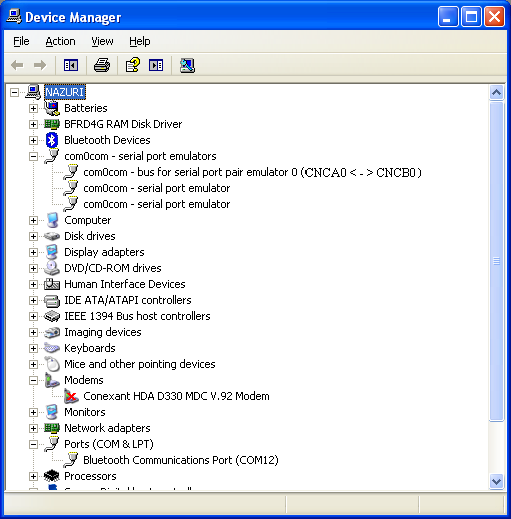

The virtual serial port should be visible in the Windows Device Manager page.































Debugging ReactOS: the com0com null modem setup, the virtual serial ports visible in the device manager

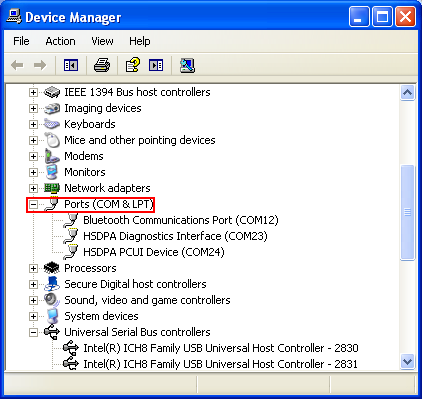

And, any previously installed virtual serial ports (by other programs) should be visible (if your machine doesn’t have physical serial ports)



Debugging ReactOS: the com0com null modem setup, other virtual ports also should be visible

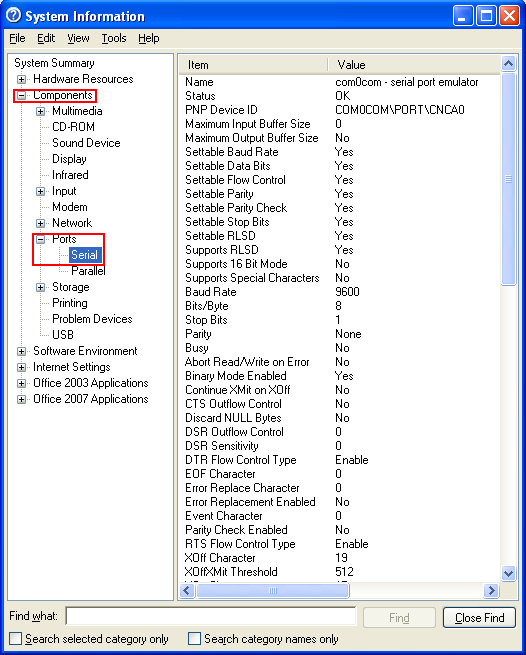

The virtual serial ports information can be viewed in the System Information.





























Debugging ReactOS: the com0com null modem setup, the virtual serial port also visible in System Information

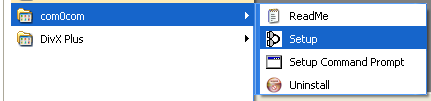

Now, launch the GUI setup.



Debugging ReactOS: the com0com null modem GUI setup shortcut

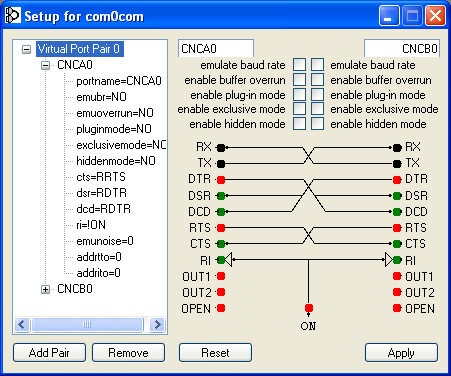

There are two default virtual ports are given to us: CNCA0 and CNCB0.



Debugging ReactOS: the com0com null modem GUI setup, two virtual ports are visible
