Windows Dynamic-Link Libraries 13











Using the DLL



The following application code example demonstrates the use of the DLL functions defined in the previous example.

Create a new empty Win32 console application project. Give a suitable project name and change the project location if needed.



Using Thread Local Storage in a Dynamic-Link Library EXE Program Example: Creating new Win32 C++ console application project in Visual C++ .NET







Using Thread Local Storage in a Dynamic-Link Library EXE Program Example: Selecting the console and empty Visual C++ project template



Then, add the source file and give it a suitable name.

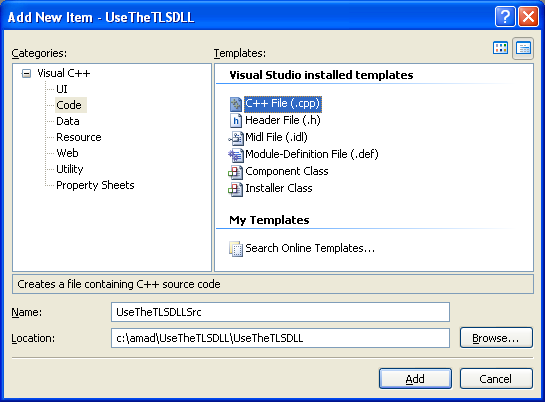

Using Thread Local Storage in a Dynamic-Link Library EXE Program Example: Adding new C++ source file for C++ source code to the existing C++ project



Next, add the following source code.



#include <windows.h>

#include <stdio.h>



#define THREADCOUNT 4

#define DLL_NAME L"TheTLSDLL"



void ErrorExit(LPSTR);



extern "C" BOOL WINAPI StoreData(DWORD dw);

extern "C" BOOL WINAPI GetData(DWORD *pdw);



DWORD WINAPI ThreadFunc(void)

{

   int i;



   if(!StoreData(GetCurrentThreadId()))

      ErrorExit("StoreData() error");



   for(i=0; i<THREADCOUNT; i++)

   {

      DWORD dwOut;

      if(!GetData(&dwOut))

         ErrorExit("GetData() error");

      if( dwOut != GetCurrentThreadId())

         wprintf(L"thread %d: data is incorrect (%d)\n", GetCurrentThreadId(), dwOut);

        else

              wprintf(L"thread Id %d: data is correct\n", GetCurrentThreadId());

      Sleep(0);

   }

   return 0;

}



int wmain(void)

{

   DWORD IDThread;

   HANDLE hThread[THREADCOUNT];

   int i;

   HMODULE hm;



   // Load the DLL

   hm = LoadLibrary(DLL_NAME);

   if(!hm)

   {

      ErrorExit("DLL (LoadLibrary()) failed to load!\n");

   }

   wprintf(L"LoadLibray() is fine, the %s DLL was loaded..\n", DLL_NAME);



   // Create multiple threads

   for (i = 0; i < THREADCOUNT; i++)

   {

      hThread[i] = CreateThread(NULL, // default security attributes

         0,                           // use default stack size

         (LPTHREAD_START_ROUTINE) ThreadFunc, // thread function

         NULL,                    // no thread function argument

         0,                       // use default creation flags

         &IDThread);              // returns thread identifier



        // Check the return value for success.

      if (hThread[i] == NULL)

         ErrorExit("CreateThread() error!\n");

   }



   WaitForMultipleObjects(THREADCOUNT, hThread, TRUE, INFINITE);

   FreeLibrary(hm);

   return 0;

}



void ErrorExit (LPSTR lpszMessage)

{

   fwprintf_s(stderr, L"%s\n", lpszMessage);

   ExitProcess(0);

}



When you build, the following error should be expected.



1>------ Build started: Project: UseTheTLSDLL, Configuration: Debug Win32 ------

1>Compiling...

1>UseTheTLSDLLSrc.cpp

1>Compiling manifest to resources...

1>Microsoft (R) Windows (R) Resource Compiler Version 6.0.5724.0

1>Copyright (C) Microsoft Corporation.  All rights reserved.

1>Linking...

1>UseTheTLSDLLSrc.obj : error LNK2019: unresolved external symbol _GetData@4 referenced in function "unsigned long __stdcall ThreadFunc(void)" (?ThreadFunc@@YGKXZ)

1>UseTheTLSDLLSrc.obj : error LNK2019: unresolved external symbol _StoreData@4 referenced in function "unsigned long __stdcall ThreadFunc(void)" (?ThreadFunc@@YGKXZ)

1>C:\amad\UseTheTLSDLL\Debug\UseTheTLSDLL.exe : fatal error LNK1120: 2 unresolved externals

1>Build log was saved at "file://c:\amad\UseTheTLSDLL\UseTheTLSDLL\Debug\BuildLog.htm"

1>UseTheTLSDLL - 3 error(s), 0 warning(s)

========== Build: 0 succeeded, 1 failed, 0 up-to-date, 0 skipped ==========



Add the path to the DLL/lib and the library file name.



Using Thread Local Storage in a Dynamic-Link Library EXE Program Example: Adding additional dependencies (LIB) to the project

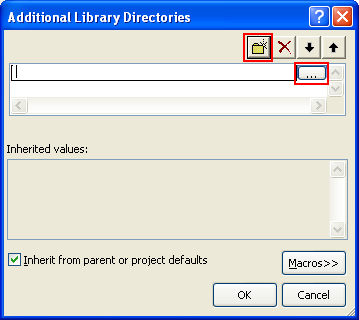

Using Thread Local Storage in a Dynamic-Link Library EXE Program Example: Finding the additional library path

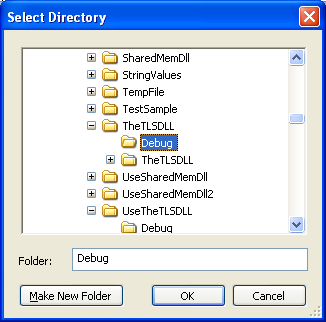

Using Thread Local Storage in a Dynamic-Link Library EXE Program Example: Selecting the additional library path

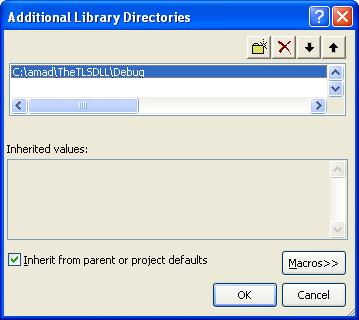

Using Thread Local Storage in a Dynamic-Link Library EXE Program Example: The additional library path



Using Thread Local Storage in a Dynamic-Link Library EXE Program Example: Telling the linker the LIB file that need to be used



Build and run the application project. The following is a sample output.



Using Thread Local Storage in a Dynamic-Link Library EXE Program Example: A sample console program output in action
