Windows Dynamic-Link Libraries 11











Another Example Using Shared Memory



The following is another program example that supposed to use the shared memory. The process uses the GetSharedMem() function implemented by the DLL to read a string from the shared memory. It is started by the parent process above.

Create a new empty Win32 console application project. Give a suitable project name and change the project location if needed.

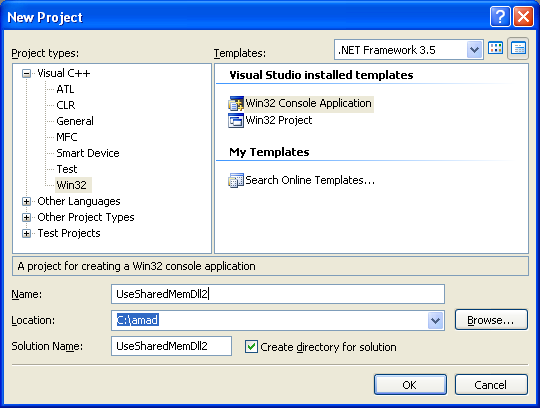

Processes that Use the Shared Memory Program Example 2: Creating new Win32 C++ console application project in Visual C++ .NET

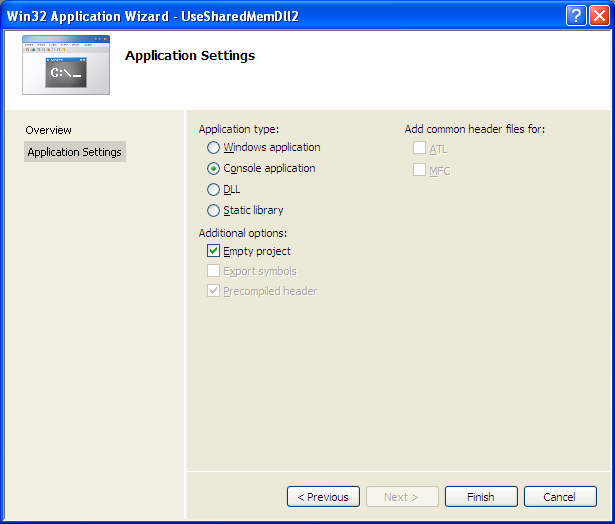

Processes that Use the Shared Memory Program Example 2: Selecting the console and empty Win32 project template



Then, add the source file and give it a suitable name.

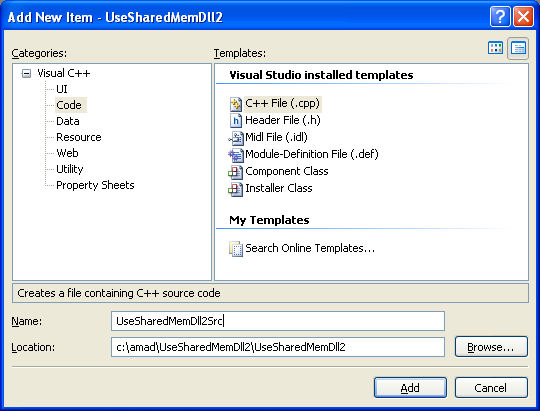

Processes that Use the Shared Memory Program Example 2: Adding new C++ source file for C++ source code to the existing C++ project



Next, add the following source code.



// Child process

#include <windows.h>

#include <stdio.h>



extern "C" void GetSharedMem(LPWSTR lpszBuf, DWORD cchSize);



void wmain()

{

    WCHAR cBuf[MAX_PATH];



    GetSharedMem(cBuf, MAX_PATH);



    wprintf(L"Child process read from shared memory: %s\n", cBuf);

}



Next add the path to the DLL/library and the library file name.

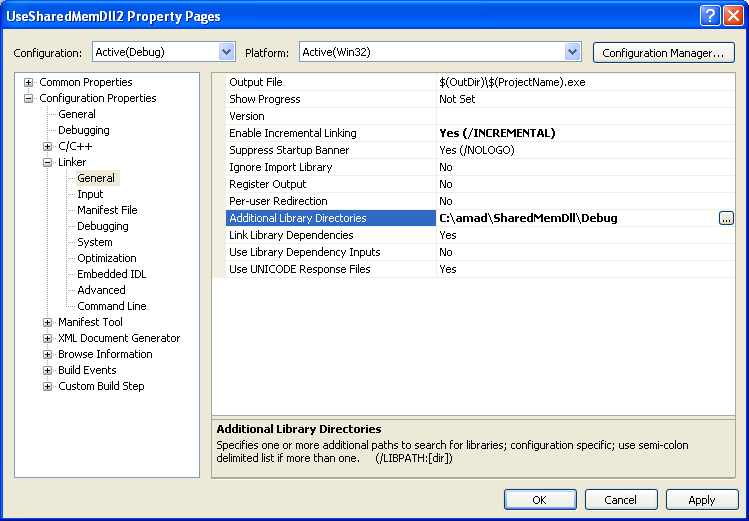

Processes that Use the Shared Memory Program Example 2: Adding the additional library path

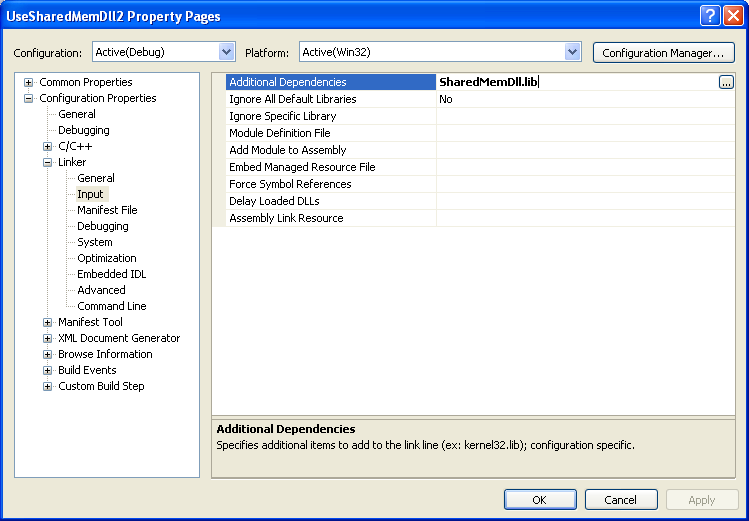

Processes that Use the Shared Memory Program Example 2: Telling the linker the library file to be searched for



Build the project. Then we need to copy the DLL into the project’s Debug folder so that it can be found during the run-time else the following error screen will be displayed.

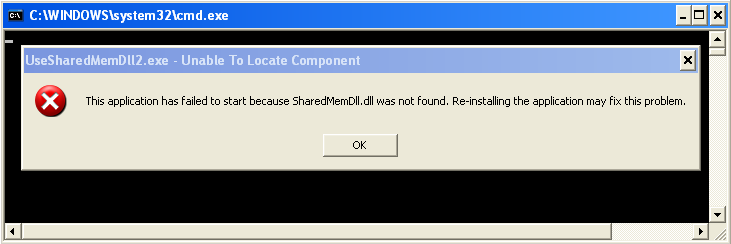

Processes that Use the Shared Memory Program Example 2: The DLL file cannot be found hence cannot resolve the functions in the program



For the sake of demonstration, copy the DLL into the application Debug’s project folder and re-run the project.

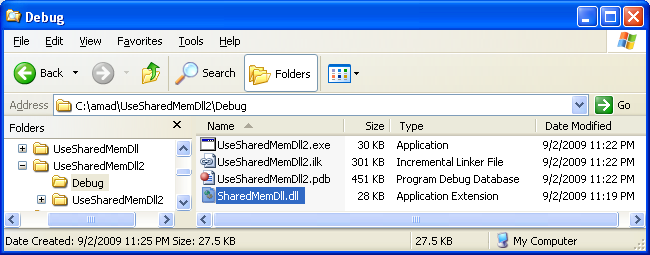

Processes that Use the Shared Memory Program Example 2: Copying the DLL file to the current project's folder



The following is the sample output.



Processes that Use the Shared Memory Program Example 2: A sample console program output in action
